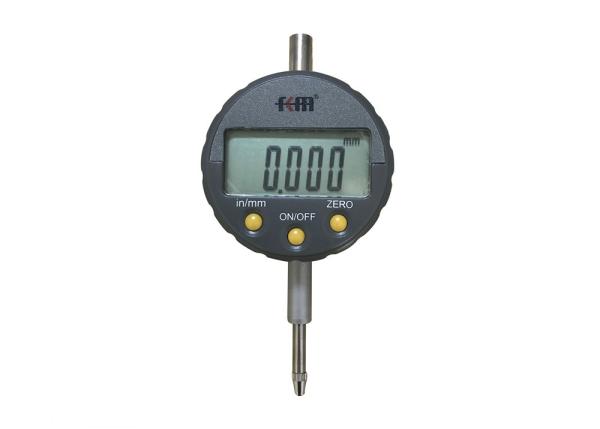

High Accuracy 0-12.7mm/0-0.5" Digital Micron Dial Indicator with Resolution 0.001mm/0.00005"
Description:
This digital dial indicator provided with ±0.009mm accuracy,0.001mm/0.00005" resolution, high-quality, multi-functional,
mainly used to accurately measure small linear distances in mechanical and industrial processes, the electronic digital display
has advantage of accurate, convenient reading and high accuracy. Digital indicator is an ideal tool for mechanical,
industrial processes and laboratory use.
Compared with the traditional dial gauge, the digital dial indicator has higher accuracy and reliability, and the measurement
results can be read directly through the electronic display, avoiding the tedious process of the traditional dial indicator that
needs to manually read the position of the pointer. In addition, the dial indicator also has a variety of protection functions,
such as overload protection, battery low voltage prompt, etc., which can ensure the safety and accuracy of measurement.
Quick Detail:
1. Large LCD for easy-reading.
2. ON/OFF, mm/in, zero setting function buttons.
3. Flat back or lug back for mounting purposes.
4. Fixed and moveable cap for option.
5. Data output.
Specification:
| Order No. |
Range |
Resolution |
Accuracy |
Max Measuring Force |
| KM-233N-12.7 |
0-12.7mm/0-0.5" |
0.001mm/0.00005" |
±0.009mm |
1.6N |
Precautions:
1. Keep indicator face clean, prevent liquid from getting into inside.
2. Avoid shocks, impact, dropping, etc., otherwise it will damage the appearance and precision.
3. Do not operate indicator in direct sunlight. Do not store indicator in an area of extreme high or cold temperature.
4. Do not connect any part of digital indicator with voltage, otherwise it will damage the circuit.
5. Do not remove end lid without using output interface. Output end should never be connected with metal.
Doing this could damage your indicator.
6. Must take out of the battery if not in use for a long time.
Applications:
1. Measure the size of parts in the machining industry, with high measurement accuracy and small error.
2. Measure a variety of flat objects, including plates, tires, or wheels.
3. Measure parameters such as the size and roundness of a round object. It can measure both external and internal circles
with high measurement accuracy and has a wide range of applications in wheels, bearings, shafts and other fields.
4. Measure the hardness of different materials. In the field of industrial production, hardness testing is very important,
especially in the quality control of parts produced by steel, aluminum and other metal materials.
5. Measure the depth parameters of an object. For example, it can be used to measure the depth of oil wells,
the depth of ground pipes laid in buildings, and so on.
FAQ:
Q1: What is the waterproof grade of this dial indicator?
A1: It has IP65 waterproof performance, which can effectively resist daily splashing water and dust, adapting to complex
industrial working environments and improving service durability.
Q2: What are the advantages of digital dial indicators compared with traditional mechanical dial indicators?
A2: This digital dial indicator has higher accuracy and better stability. It adopts large LCD screen for direct digital reading,
avoiding reading errors caused by manual pointer observation of traditional dial gauges, with more intuitive data and
higher measurement efficiency.
Q3: How to perform zero setting operation?
A3: The indicator is equipped with a dedicated ZERO key, which supports one-key zero setting at any measuring position,
convenient for benchmark calibration and improving measurement accuracy.
